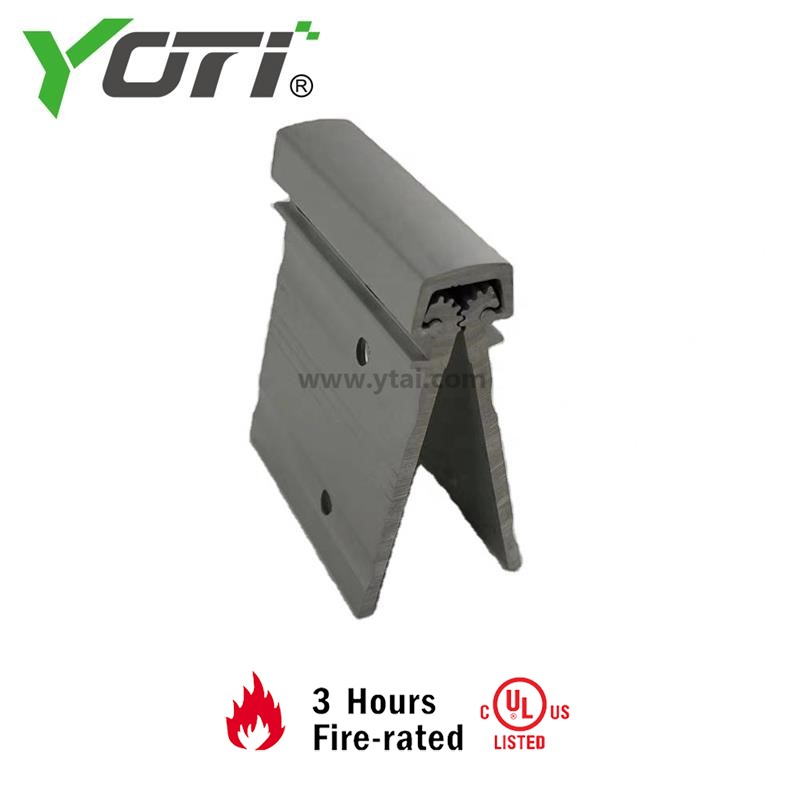

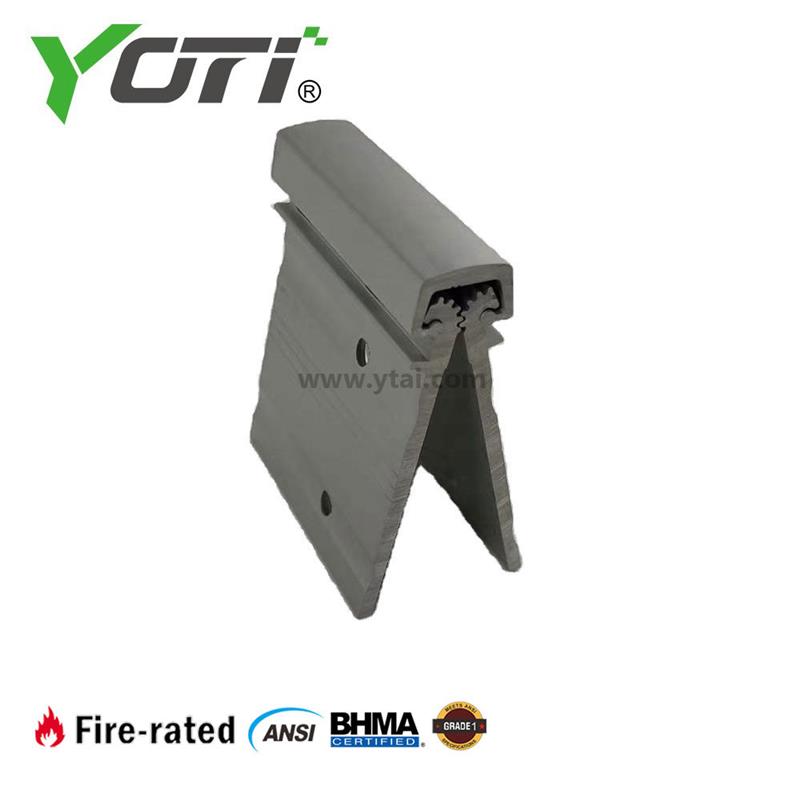

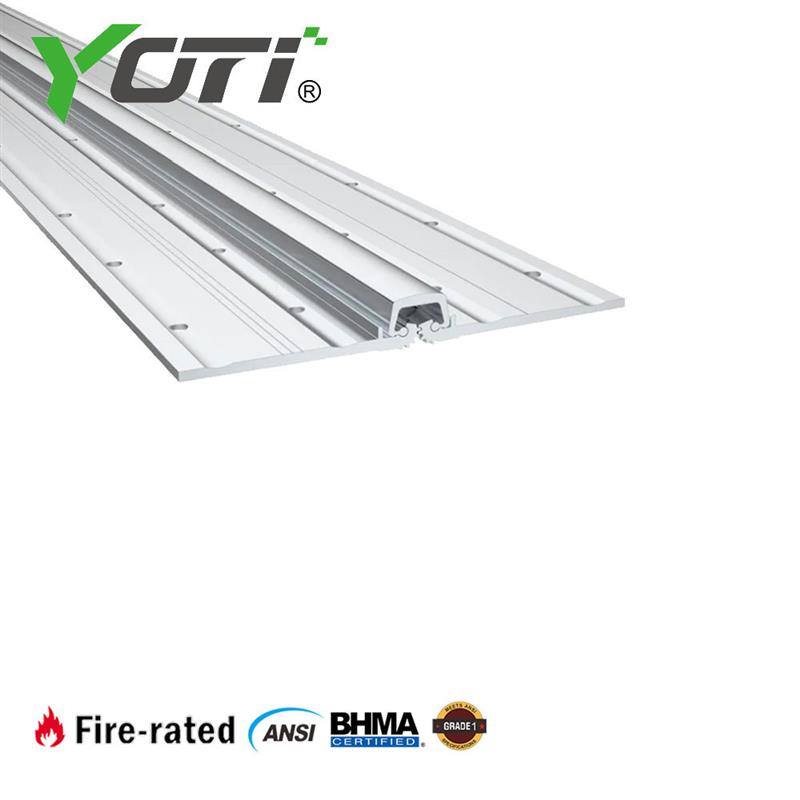

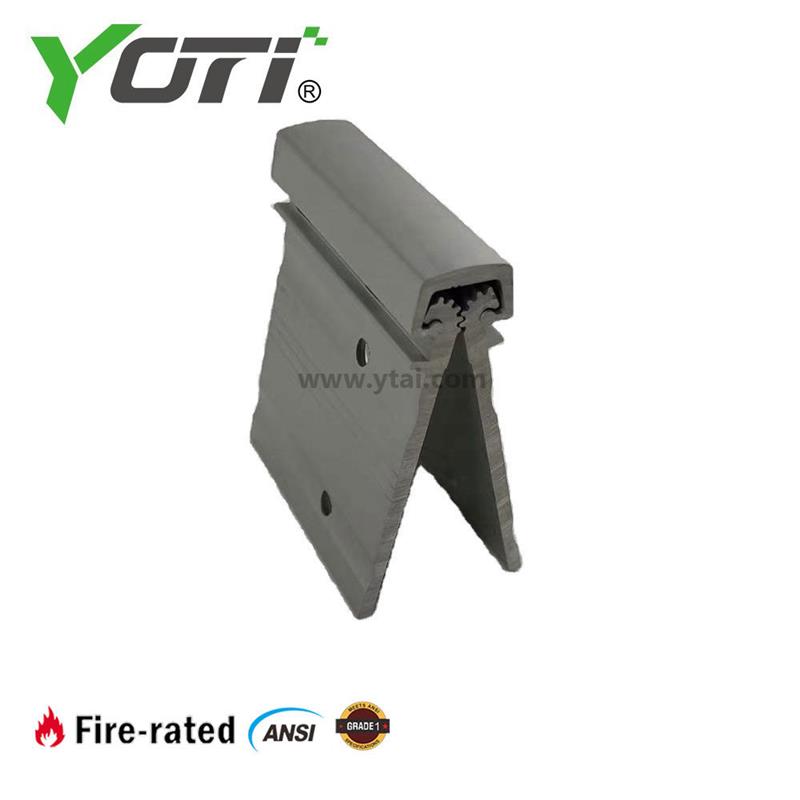

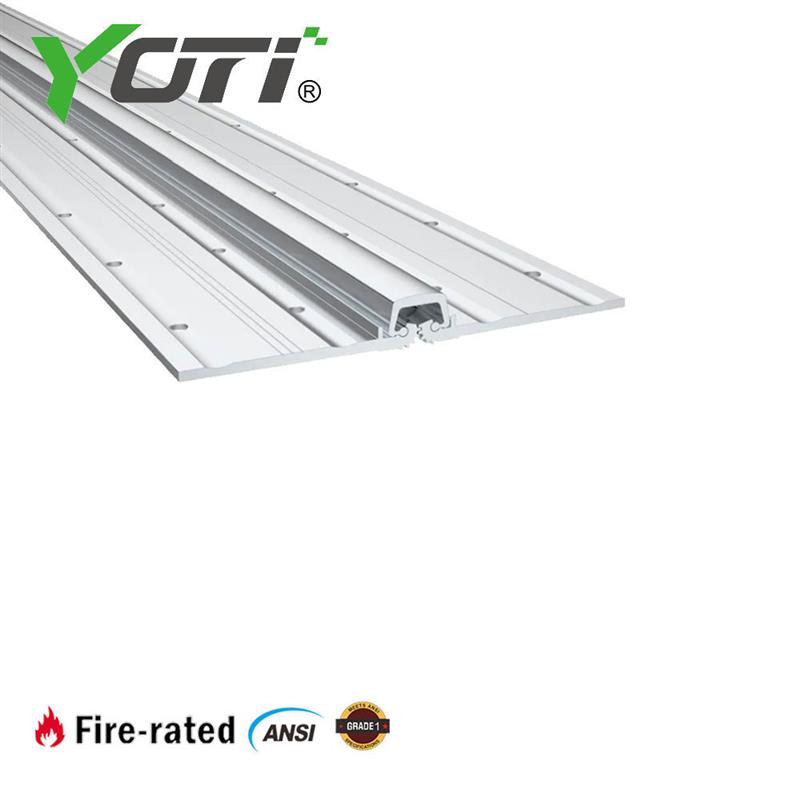

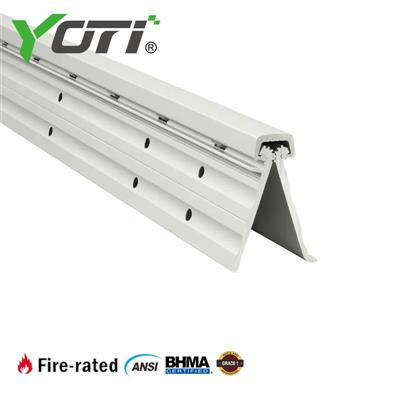

This Full Mortised, X-Series Continuous Hinge for Thick Doors with 1/16" Inset Leaf is designed for, though not limited to, new door applications with electrical modifications. It has wider hinge leaves to accomodate doors of 2.5" thick. X-Series Hinges have extra duty, thicker leaves than traditional continuous geared hinges and requires no additional clearance. Available with various options, two anodized finishes and is custom cut to size.
|
Length (inches)
|
Length (mm)
|
Hole Count (Door)
|
Hole Count (Jamb)
|
|
83
|
2108
|
26
|
26
|
|
95
|
2413
|
28
|
28
|
|
119
|
3023
|
33
|
33
|
Features
◇Extra heavy duty
◇Designed for door applications with electrical modifications
◇For use with 2-1/2" thick doors
◇Applied to conceal both leaves for safety and security
◇Custom lengths available
◇Certain door and frame conditions may require an extra 1/32"-1/16" clearance
◇Excessive clearance on fire rated assemblies may violate the requirements for NFPA 80
Benefits
◇Distributes door weight evenly, extending life of door
◇Makes the door operate smoothly
◇Electrical wiring is concealed to prevent tampering
◇Hollow metal door and frame manufacturers’ standard is acceptable
◇Special hinge reinforcements are not required

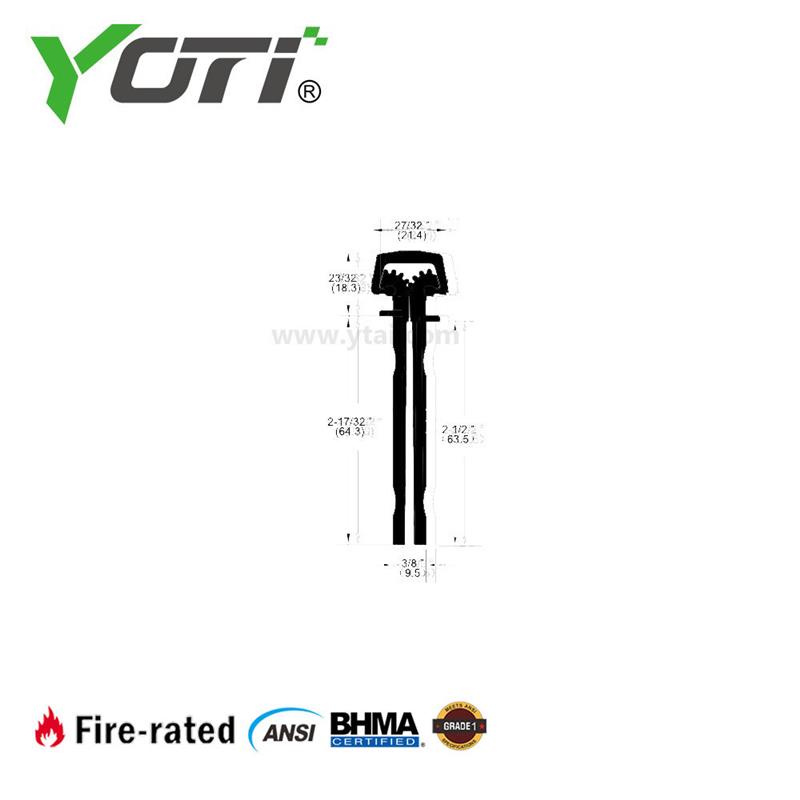

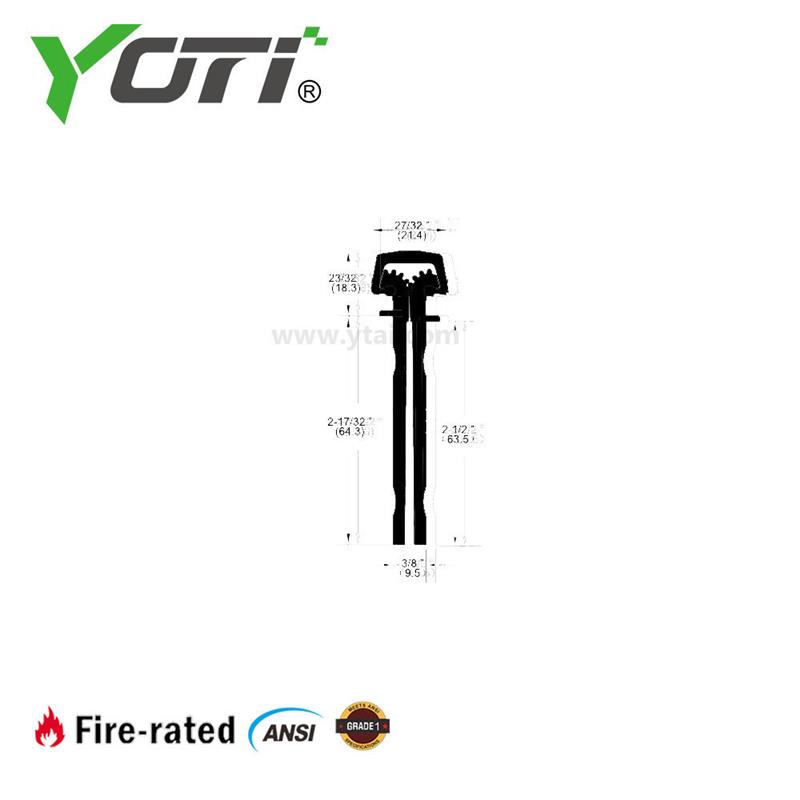

Specifications
◇Bearing Spacing: 1 1/2"
◇Grade: Grade 1
◇Hinge Material: Aluminum
◇Hinge Mounting Type: Full Mortise
◇Hinge Strength: Heavy Weight
◇Handing: Non-handed
◇Fastener: Teks
◇Fastener Type: Self Drilling
◇Maximum Door Thickness: 2 1/2"
◇Minimum Door Thickness: 2 1/2"
◇Maximum Door Width: 4'
◇Maximum Hinge Length: 120"
◇Minimum Hinge Length: 79"
◇Maximum Swing: 180°
◇Minimum Hinge Clearance: 3/8"
◇Weight: 1.25lbs. per foot
