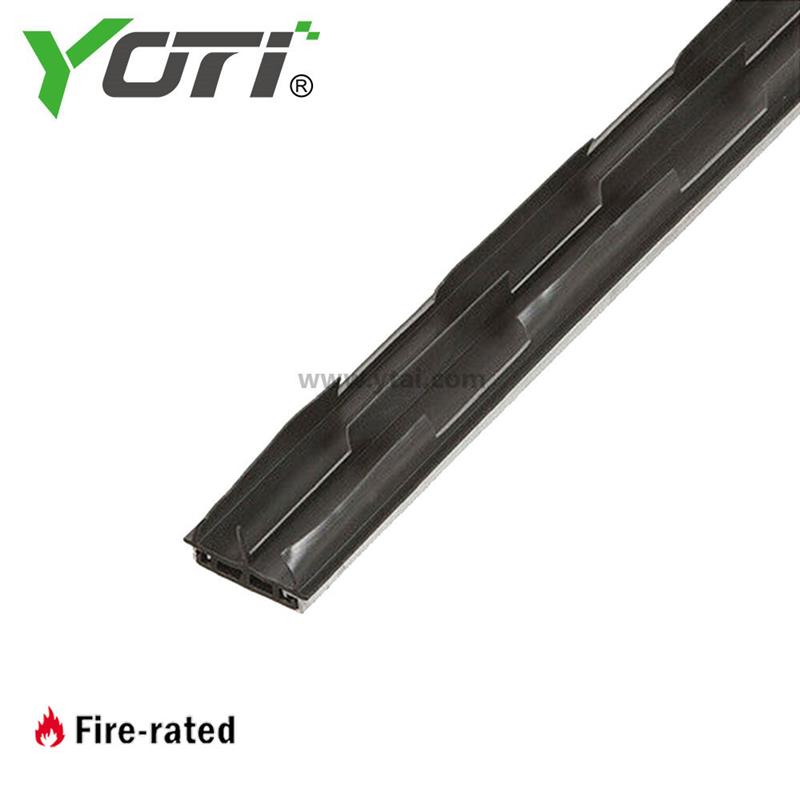

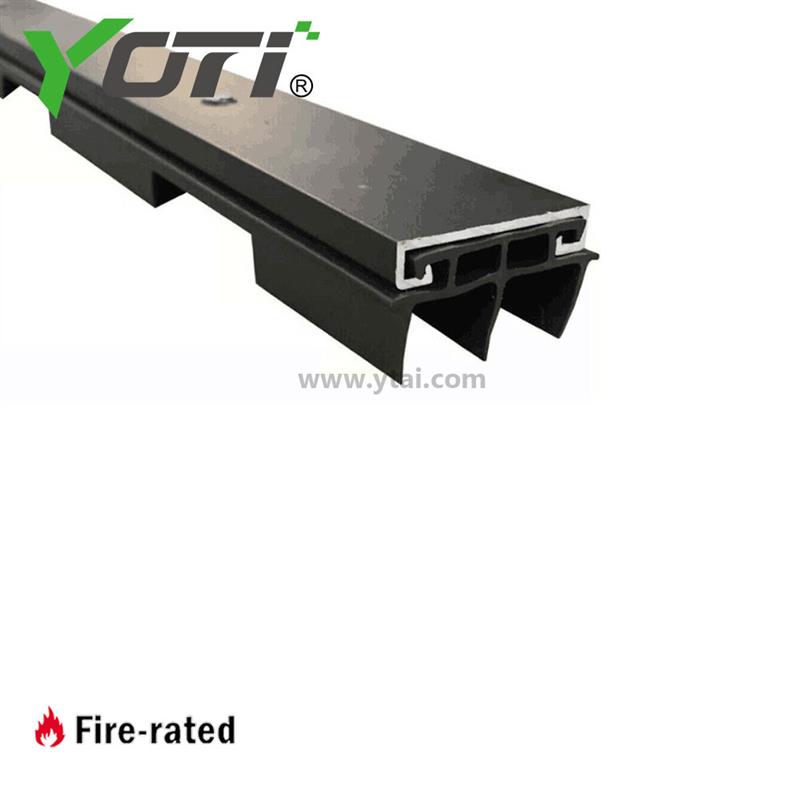

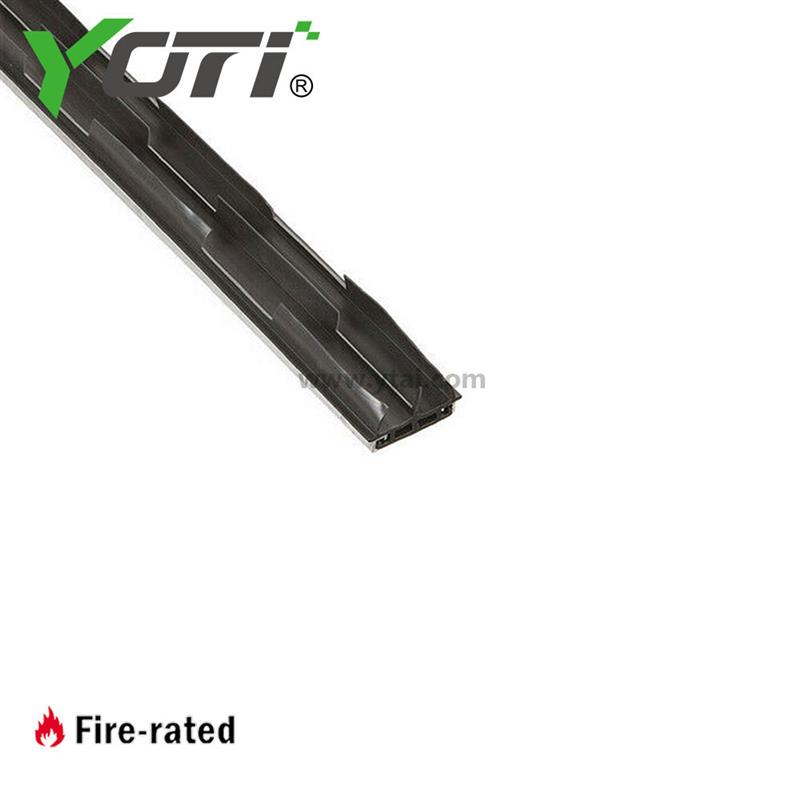

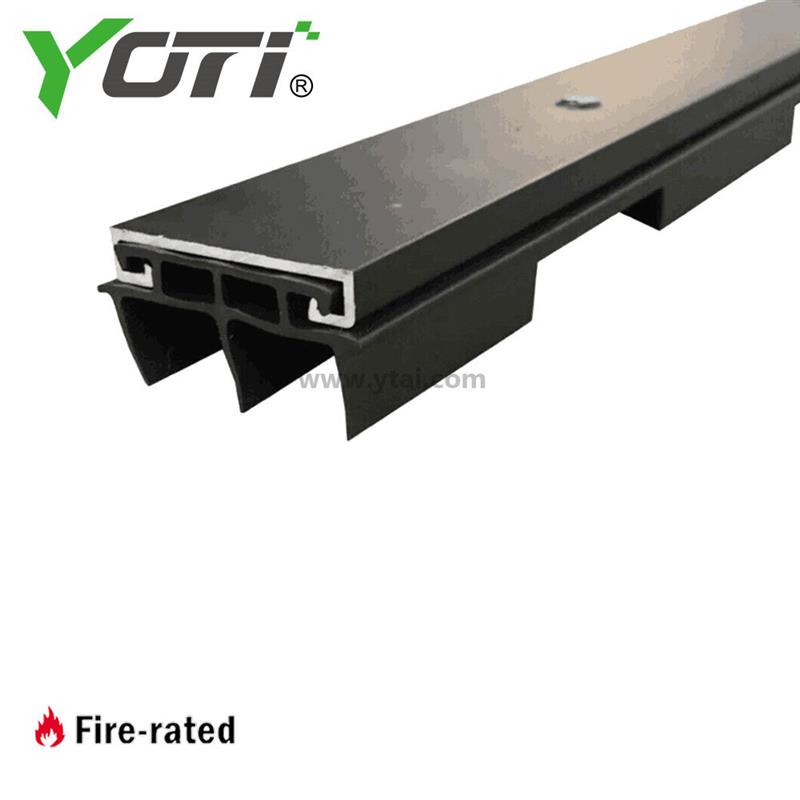

This kind of door bottom shoes is mounted to the underside of the door to provide a solid seal, while not affecting the appearance of the face of the door. It can be applied to doors greater than 1.18" thick. It is fitted with a black, pliable Vinyl notched or standard triple fin seal, see below for details. Available in various aluminum finishes and available in stock sizes.
|
Retainer Material
|
Aluminum
|
|
Temperature Range
|
-4°F to 122°F
|
|
Door Type
|
Wooden Door, Metal Door
|
|
Seal Type
|
Vinyl Rubber Seal
|
|
Mounting
|
Door Shoe Mount
|
|
Seal Height
|
11/16" Height
|
|
Additional Dimensions
|
Door seal is 1-3/16" thick
|
|
Length
|
Standard 36",48";Custom Cut to Size
|
|
Installation
|
Drill holes are provided
|
|
Cross Reference
|
PEMKO #2343_V; NGP #12TNF
|
